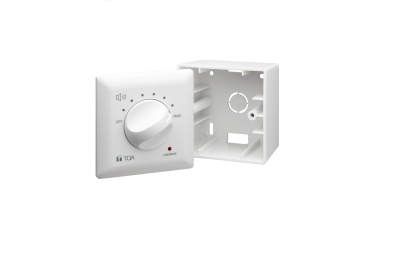

TOA วอลลุ่ม รุ่น AT-4012 AS

Input Capacity
12 Watt (Max)
Attenuations
8 steps (0 dB, -3 dB, -6 dB, -9 dB, -12 dB, -15 dB, -18 dB, OFF)
Override Indicator
Red LED (4-wire connection only)
Overriding Voltage
24V DC, 11mA (4-wire connection only)
Dimensions
86 (W) × 86 (H) × 24 (D) mm
Weight
0.12kg
Color
White (RAL 9016 or equivalent)
Finish
Knob, Cover panel: ABS resin, white (RAL 9016 or equivalent)
Front Panel (Plate): Surface treated steel plate
Terminal
Screw type x 5 (Terminals)
Usable Cable
Cable range: 22 - 14 AWG
